Securement Straps & Kits
Floor Lock™ Design

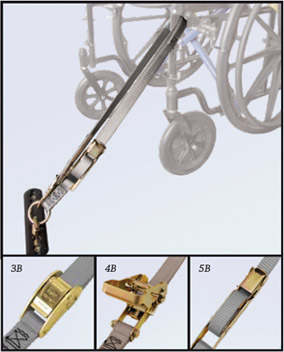

Features snap hooks ends. Strap is threaded through the appropriate section of the wheel chair. Then are attached to the ring fitting in the floor anchorage. Floor Lock™straps meet the minimum length (16” front & 19” rear) and maximum lengths (28” front & 29” rear) specified when installed. Floor Lock™ kits comply with SAE J2249.
| 4-STRAP SECUREMENT KITS | PART NUMBER |
| 2-ea. 3B cambuckle straps*, 2-ea. 4B ratchet buckle straps | SH2000L3B4B-KT |
| 2-ea. 3B cambuckle straps*, 2-ea. 5B overcenter buckle straps | SH2000L3B5B-KT |
| 4-ea 4B ratchet buckle straps | SH2000L4B4B-KT |
| 4-ea 5B overcenter buckle straps | SH2000L5B5B-KT |
| Replacement Straps: | |
| 1-ea. 3B Cambuckle strap* | SH2000L3B |
| 1-ea. 4B Ratchet buckle strap | SH2000L4B |
| 1-ea. 5B Overcenter strap | SH2000L5B |
Note: For kits or straps compatible with A-track anchorage, replace “L” with “A” in the part number. i.e SH2000L3B4B-KT becomes SH2000A3B4B. *Cambuckle straps are to be used for front securement only on forward facing wheelchair securement.
